Quick Details

  • Type: Other, Packing Machine
  • Condition: New
  • Application: Chemical, Food, Medical, Coffee Powder Packing Machine
  • Packaging Type: Bags, Cartons, Film, Foil, Pouch, Stand-up Pouch
  • Packaging Material: Paper, Plastic, laminated film
  • Automatic Grade: Automatic
  • Driven Type: Pneumatic, Vertical
  • Voltage: 220V
  • Power: 4KW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HOSNG
  • Model Number: HS-720D Powder Packing Machine
  • Weight: 850KG
  • Dimension(L*W*H): 1780*1350*2000mm
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Place of origin: Guangdong,China Mainland
  • Usage: Powder Packing Machine
  • Customer order: Accept
  • Advantages: Low consumption
  • Packing: Export standard wooden case
  • Main components of packing machine: Import from German,Japan,Korea,etc
  • Accuracy: 1-2g
  • Film material: POPP/CPP,POPP/VMCPP,BOPP/PE,PET/VMPEY/PE,PET/AL/PE,NY/PE,PET/PET.

Packaging & Delivery

Packaging Details Powder Packing Machine Package: Export Standard Wooden case.
Delivery Time Shipped in 20 days after payment

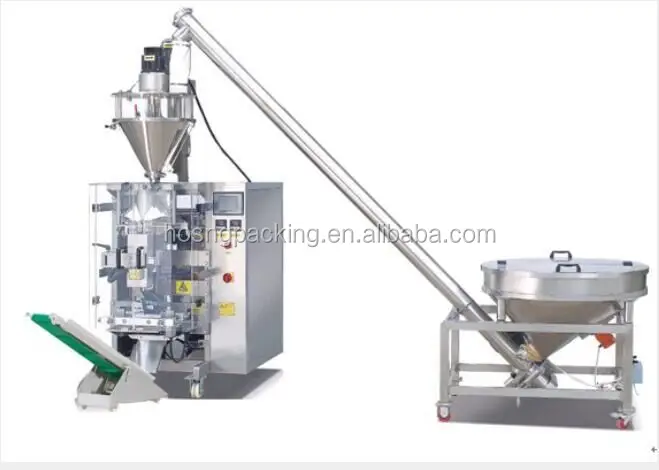

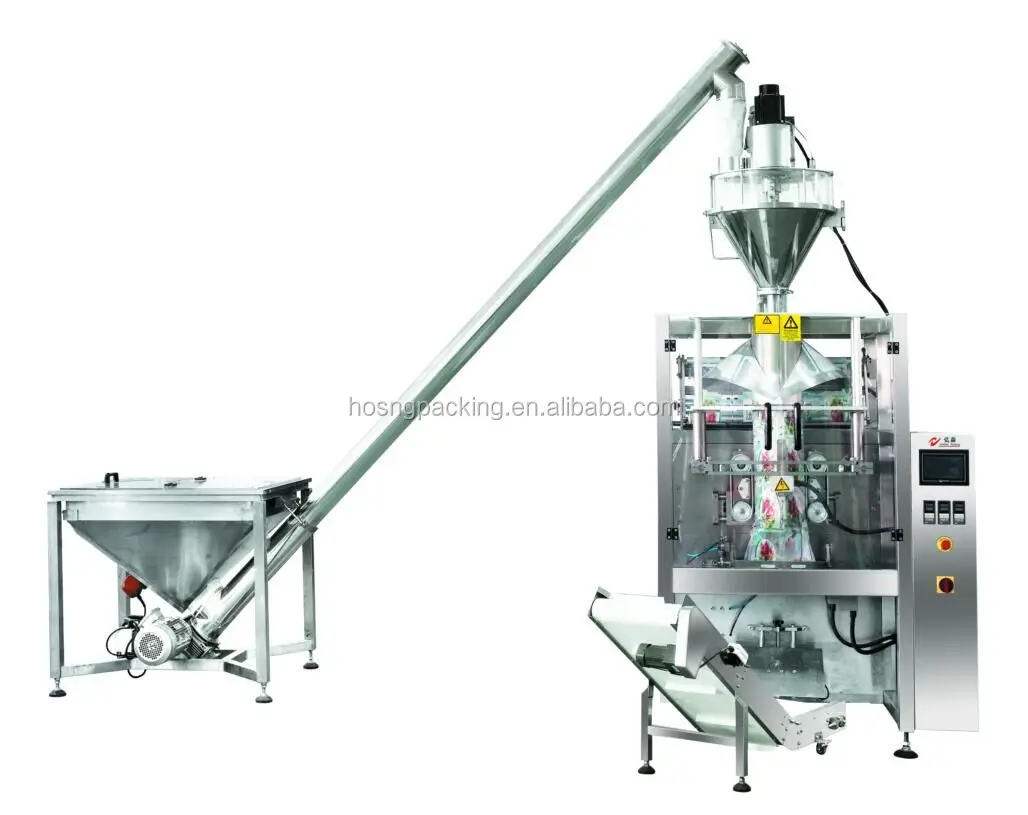

HS-720D  powd filling machine
Applications
Suitable for measuring the powder materials .such as milk powder and chemical powder


Specification

Speed :20- 70bags/min

Bagsize:

100-450 mm L

100-350 mm W

Film thickness: 0.04-0.08mm

Power : 2.0KW/220V

Machine weight : 800kg

Machine dimension:

(L)1780*(W)1350*(H)2000mm

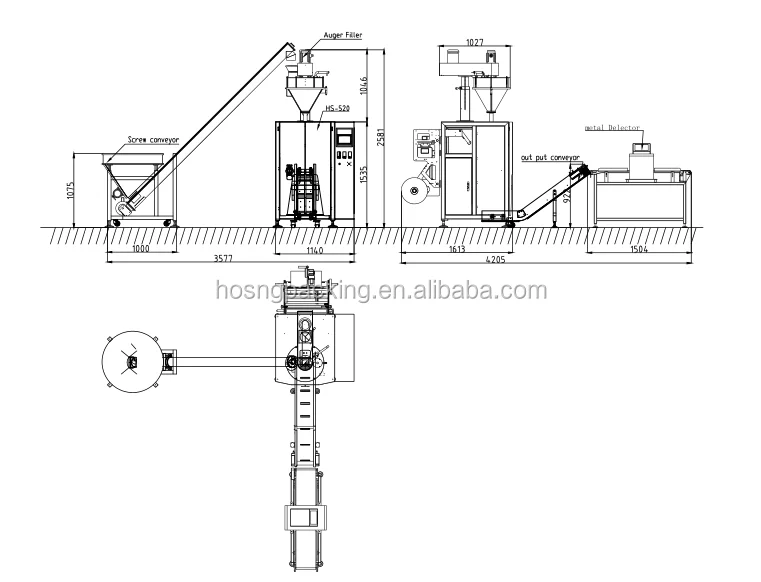

The system includes five parts:

HS-720 basic machine

HS- screw conveyer

HS-Auger filler machine

Finished products conveyor

Oil-free air compressor



The major performance and structural feature
PLC control with touch panel-step by step instruction.Equipped with servo winding system,pneumatic control system
The maximize to improve the whole machine precision, reliability and stability.
Use intellectual temperature controller,the high temperature control to ensure neat sealing.
The perfect automatic alarm safety protection,little waste.the machine will automatically complete All packaging processes from feeding, measuring, filling, Printing ,finished bag

Technical characterisics:
The machine adopt servo motor control,screw measuring,precision 1%.
Adjestment product weight without any tools.
Application:
Suitable powder packing .flour,milk,powder,coffee powder,feed,fine powder etc.

Features of HS- screw convoyer
Introduction: This machine adopt screw conveying material, and the storage can be vibrated . it is suitable for conveying various powder and little pellets

Technical specification:
Lifting height
2.2m-10m
Lifting volume
3 cubic meter/hour
Model
HS-D2
Specification
Making according to the specifications of the buyer
Material
Carbon steel, stainless steel
Technical index
1. the size and weight of the conveying material.
2. conveying speed and height
