Quick Details

  • Type: Other
  • Condition: New
  • Application: Food, Powder
  • Packaging Type: Bags, Pouch, Stand-up Pouch
  • Packaging Material: Plastic
  • Automatic Grade: Automatic
  • Driven Type: Pneumatic
  • Voltage: 220V 50-60Hz
  • Power: 4KW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Hosng Packing Machine
  • Model Number: HS-720D
  • Weight: 850KG
  • Dimension(L*W*H): 1780*1350*2000mm
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Driven type: Vertical
  • Place of Original: Guangdong(China Mainland)
  • Usage: Powder,Coffee powder
  • Package: Export standard wooden case
  • Customer order: Accept
  • Advantages: Low consumption
  • Accuracy: 1-2g
  • Main components of packing machine: Import from German,Japan,Korea,etc.
  • Certificate: CE
  • Speed: 20-70bags/min

Packaging & Delivery

Packaging Details Package:Export Standard Wooden case
Delivery Time Shipped in 20 days after payment
HS-720D powder packing machine system specification

Applications
Suitable for measuring the powder materials .such as milk powder and chemical powder.

Specification
Speed :20-70bags/min
Bagsize:L 100-450 mm   W100-350 mm
Film thickness: 0.04-0.08mm
Power : 2.0KW/220V
Machine weight : 800kg
Machine dimension:
(L)1780*(W)1350*(H)2000mm

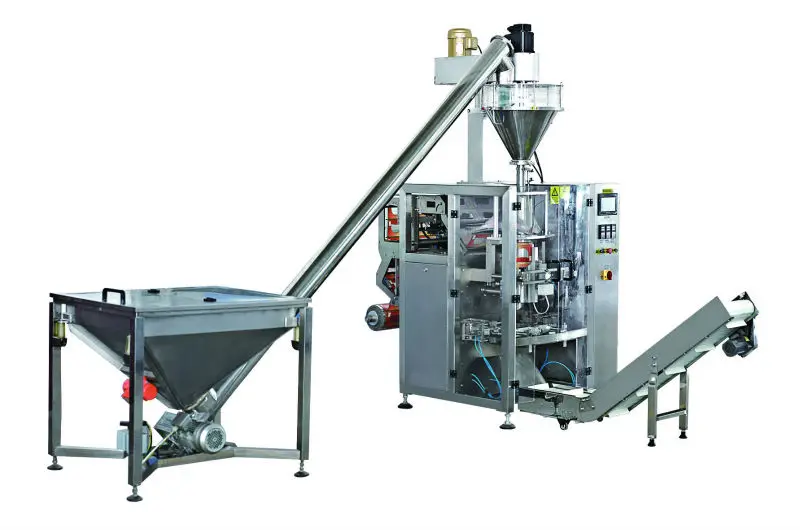

The system includes five parts:
HS-720 basic machine
HS- screw conveyer
HS-Auger filler machine
Finished products conveyer
Oil-free air compressor

The major performance and structural feature
PLC control with touch panel-step by step instruction.Equipped with servo winding system,pneumatic control system
The maximize to improve the whole machine precision, reliability and stability.
use intellectual temperature controller,the high temperature control to ensure neat sealing.
the perfect automatic alarm safety protection,little waste.the machine will automatically complete all packaging processes from feeding, measuring, filling, Printing ,finished bag.

Technical characterisics:
The machine adopt servo motor control,screw measuring,precision 1%.
Adjestment product weight without any tools.
Application:
Suitable powder packing .flour,milk,powder,coffee powder,feed,fine powder etc.
4,Features of HS- screw conveyer
Introduction: This machine adopt screw conveying material, and the storage can be vibrated . it is suitable for conveying various powder and little pellets

Technical specification:
Lifting height
2.2m-10m
Lifting volume
3 cubic meter/hour
Model
HS-D2
Specification
Making according to the specifications of the buyer
Material
Carbon steel, stainless steel
Technical index
1. the size and weight of the conveying material.
2. conveying speed and height
